Common Window Sensor Configuration Mistakes: 2026 Pillar Guide

The integrity of a residential security perimeter is often compromised not by the failure of hardware, but by the subtle miscalculation of its environment. While the window sensor—typically a simple magnetic reed switch—appears to be the most straightforward component of a home security system, its efficacy is entirely dependent on its spatial and logical relationship to the aperture it monitors. Common Window Sensor Configuration Mistakes. In a modern estate where dozens of sensors must coordinate with a central hub, a single oversight in alignment, signal pathing, or zone assignment can render an expensive installation functionally blind.

The transition from a basic alarm kit to a high-assurance security posture requires moving beyond the “plug-and-play” mindset. We must view the window as a dynamic mechanical system subject to thermal expansion, structural settling, and electromagnetic interference. To ignore these variables is to invite a cycle of nuisance alerts or, more dangerously, “silent failures” where a breach occurs without triggering a notification. Configuration is the bridge between a box of electronics and a resilient defensive network; when that bridge is built on faulty assumptions, the entire security ecosystem is destabilized.

In 2026, as residential systems become more interconnected through protocols like PowerG, Matter, and Z-Wave 800, the complexity of managing these nodes has increased. We are no longer dealing with simple “open or closed” circuits, but with supervised wireless nodes that must constantly negotiate their status with a controller. This flagship reference explores the technical and strategic nuances of perimeter setup, providing an editorial deconstruction of why systems fail and how to institutionalize reliability. This is a study of precision, intended for those who prioritize the intellectual honesty of a well-engineered home.

Understanding “Common Window Sensor Configuration Mistakes”

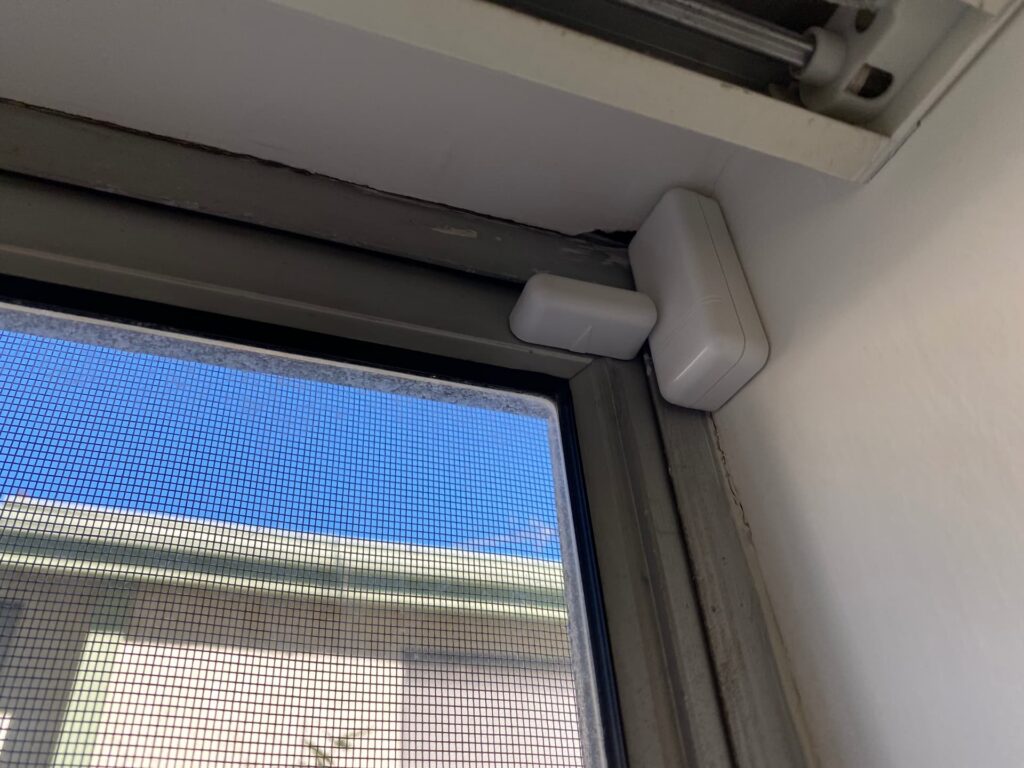

To accurately diagnose common window sensor configuration mistakes, one must perceive the sensor as a tripartite entity: the physical mounting, the wireless communication, and the software-defined zone. A mistake in any of these three pillars invalidates the others. For example, a sensor may be perfectly mounted with high-bond adhesive, but if its software zone is configured as an “Entry/Exit” delay rather than a “Perimeter” instant trigger, an intruder gains a thirty-second window to disable the hub before an alarm sounds. This misalignment of intent and execution is the hallmark of an amateur installation.

One of the most frequent oversimplifications involves the magnetic gap. Most manufacturers specify a maximum distance—typically 0.5 to 0.75 inches—between the magnet and the sensor. However, this is a laboratory maximum. In the field, structural shifting due to seasonal humidity can move a window sash by several millimeters. If the initial configuration sits at the outer edge of the tolerance, a “chime” might trigger in the middle of a windy night as the window rattles, leading to “alarm fatigue.” The common window sensor configuration mistakes in this category often stem from a failure to account for the “dynamic tolerances” of a living building.

Furthermore, there is the issue of “Supervision Neglect.” In modern wireless ecosystems, sensors are “supervised,” meaning they ping the hub at set intervals to confirm they are still online. A configuration error often occurs when a user disables these heartbeats to save battery life or places the hub in a location where these pings are frequently lost. This creates a “zombie sensor”—a device that appears active in the mobile app but has actually lost its connection to the brain of the system. True security requires a configuration that prioritizes signal integrity over convenience.

The Evolution of Perimeter Logic: From Hardwired to Supervised

Historically, the window sensor was a binary mechanical loop. In the 1970s and 80s, hardwired systems utilized a “normally closed” circuit. If the magnet moved away, the reed switch opened, breaking the circuit and triggering the alarm. Configuration was physical; it involved drilling into the sash and pulling copper wire. The mistakes of that era were largely mechanical—broken wires or corroded contacts.

The 1990s introduced early wireless technology, which brought the first wave of configuration-based failures. These sensors were “unsupervised,” meaning the hub had no idea if a sensor had been smashed or if its battery had died. The responsibility for monitoring health fell entirely on the homeowner. By the 2010s, “Smart Home” kits democratized security, but they introduced a new layer of software complexity. Users were suddenly tasked with defining “Zones,” “Chimes,” and “Notifications” without a foundational understanding of security logic.

Today, in 2026, we utilize “Supervised Mesh” networks. The sensors are essentially tiny computers that negotiate frequencies and report battery levels in millivolts. The modern configuration challenge has shifted from the physical wire to the digital “handshake.” We now have to manage “Signal-to-Noise Ratios” and “Frequency Hopping” settings, where a mistake doesn’t just break a circuit—it desynchronizes a network.

Conceptual Frameworks: The Physics of Detection

To avoid systemic errors, installers should adopt these three mental models:

1. The Magnetic Tolerance Envelope

Visualize the magnet’s field as a three-dimensional bubble. The sensor must sit comfortably within the core of this bubble, not at its thinning edges. This accounts for the “rattle” factor and mechanical drift over time.

2. The RF Pathing Logic

Every wall, mirror, and metal appliance between the sensor and the hub is a “signal tax.” A configuration that ignores the absorption coefficient of building materials—such as brick or foil-backed insulation—is destined for intermittent connectivity drops.

3. The “Zone” Hierarchy

Security is a layered geography. A window in a second-floor bedroom requires a different “Response Type” than a first-floor sliding glass door. A failure to categorize these zones correctly leads to “system blindness,” where critical breaches are treated with low-priority notifications.

Categories of Configuration Error and Systemic Trade-offs

A rigorous configuration requires balancing hardware capabilities with environmental constraints.

Error Category	Technical Manifestation	Trade-off	Result
Magnetic Proximity	Mounting at the max gap limit	Eases installation	High false-alarm rate (FAR)
Zone Misclassification	Setting windows to “Entry/Exit”	Avoids sirens during arrival	Provides intruder a “disarm window”
Signal Overextension	Placing hub too far from nodes	Reduces equipment count	Intermittent “Sensor Offline” errors
Supervision Delay	Setting check-ins to 24 hours	Maximizes battery life	Delayed detection of system tampering
Material Interference	Mounting on metal frames	Preserves aesthetics	“Detuned” antenna; high packet loss

Decision Logic: The “Metal Frame” Rule

When mounting on aluminum or steel frames, one must use a non-conductive spacer. Without it, the metal of the window frame absorbs the sensor’s radio energy, effectively shortening its range by 50% or more. This is one of the most frequently overlooked common window sensor configuration mistakes in modern urban apartments.

Detailed Real-World Scenarios and Failure Modes Common Window Sensor Configuration Mistakes

The “Entry/Exit” Trap

• The Mistake: A homeowner configures a kitchen window as an “Entry/Exit” zone because they occasionally use it to pass groceries through.

• The Failure: An intruder enters through that window. Instead of an immediate siren, the system beeps quietly for 45 seconds. The intruder finds the hub and smashes it.

• The Correction: All windows must be “Perimeter” zones (instant alarm). Groceries should be managed through a “System Bypass” or a temporary disarm.

The “Faraday” Sunroom

• The Mistake: Installing sensors in a sunroom with “Low-E” glass and aluminum mullions without testing the signal.

• The Failure: The “Low-E” coating acts as a mirror for RF signals. The hub, located in the basement, cannot hear the sensor heartbeats.

• The Second-Order Effect: The homeowner ignores the “Sensor Offline” message, assuming it’s a glitch, leaving the sunroom unprotected.

The “Thermal Drift” False Alarm

• The Mistake: Aligning the sensor and magnet with zero clearance during a humid summer.

• The Failure: In winter, the wood frame contracts. The magnet shifts just enough to “break” the circuit momentarily during a gust of wind.

• The Result: The police are dispatched at 3 AM for a “non-event,” leading to municipal fines.

Planning, Cost, and Resource Dynamics

The economic impact of configuration mistakes is often realized through “Maintenance Debt.”

Cost Driver	Initial Investment	Cost of Misconfiguration	Strategic ROI
Professional Audit	$150 – $300	$0	High (Preventative)
False Alarm Fines	$0	$100 – $500 (per event)	Negative
Battery Replacement	$5 per unit	$50 (if drained by retries)	Neutral
Equipment Replacement	$35 per node	$0	Low

The “Retry” Battery Drain:

When a sensor is misconfigured in a way that its signal is “marginal,” the radio will “retry” its transmission multiple times to reach the hub. This can drain a 5-year battery in less than 12 months. Identifying these common window sensor configuration mistakes early is a matter of fiscal prudence.

Tools, Strategies, and Support Systems

1. Signal Strength Indicators (RSSI): Use the hub’s installer menu to check the “Received Signal Strength Indicator” for every node. Anything below -70 dBm requires a repeater.

2. Magnetic Spacers: Use plastic risers to elevate the sensor off metal surfaces.

3. The “Chime” Walk-Test: Before arming the system, walk the perimeter and ensure every window produces a distinct chime upon opening.

4. Supervision Interval Tuning: For high-security zones, set the heartbeat to the shortest allowable duration (e.g., 60 minutes).

5. RF Jam Detection: Configure the hub to alert you if it detects a “noise floor” rise, which indicates someone may be trying to block the sensor signals.

6. Adhesive vs. Mechanical Mounting: Use screws for any window subject to high vibration or extreme temperature swings.

Risk Landscape: The Taxonomy of Compounding Failures

Configuration errors rarely exist in isolation; they compound. A sensor with a marginal signal (Mistake A) that is also set to a long supervision window (Mistake B) creates a “Blind Spot” that can last for hours. If the magnet is also misaligned (Mistake C), the system may report the window as “Closed” when it is actually “Ajar,” allowing wind to rattle the frame and eventually trigger a false alarm that drains the hub’s battery.

This taxonomy of failure demonstrates that the common window sensor configuration mistakes are often a chain of small compromises. The “Risk of Normalization” occurs when a homeowner becomes used to a “Sensor Offline” message and stops investigating it, effectively deactivating their own security through psychological friction.

Governance, Maintenance, and Long-Term Adaptation

A security system is a living infrastructure. It requires a governance model to remain effective.

The “Aperture Audit” Checklist

• Monthly: Perform a signal strength sweep. Note any sensors that have dropped in dBm.

• Seasonal: Check the physical gap on all wood-frame windows during the first freeze and the first heatwave.

• Bi-Annually: Review Zone Classifications. Did you turn off a siren for a party and forget to turn it back on?

• Annual Battery Sweep: Replace batteries in high-traffic sensors (like the kitchen window) regardless of their reported level.

Measurement, Tracking, and Evaluation Metrics

• PSR (Packet Success Rate): The percentage of “Supervision” packets successfully received. Aim for >99%.

• False Alarm Ratio (FAR): The number of false trips relative to total activations.

• MTTR (Mean Time to Repair): How long does a “Sensor Offline” message persist before the homeowner addresses it?

• Signal Margin: The difference between the sensor signal and the local noise floor. A 20dB margin is the gold standard for reliability.

Common Misconceptions and Oversimplifications

• Myth: “If the light blinks on the sensor, it’s working.” Correction: The blink only means the sensor detected the magnet; it doesn’t mean the hub received the signal.

• Myth: “Adhesive is just as good as screws.” Correction: In high-humidity or high-heat environments, adhesive “creeps,” causing the sensor to fall and trigger a false “Tamper” alert.

• Myth: “Wireless sensors can’t be used on metal windows.” Correction: They can, but only with proper non-conductive spacers to prevent signal absorption.

• Myth: “I don’t need a professional to check my DIY setup.” Correction: A professional audit can identify RF dead zones that a standard DIY “Walk Test” will miss.

• Myth: “Batteries always last five years.” Correction: Battery life is a function of signal quality; a poor configuration kills batteries.

Ethical and Practical Considerations

In the era of smart home data, a misconfigured sensor that “flaps” (frequently opens and closes in the logs) creates a trail of metadata that could theoretically be exploited to determine your occupancy patterns. Furthermore, there is a social ethic to security: a system prone to false alarms due to common window sensor configuration mistakes wastes public police resources. Every time an officer is dispatched to a “non-event,” they are unavailable for a genuine emergency elsewhere. Reliability is not just a personal convenience; it is a civic responsibility.

Synthesis and Final Perspective

The mastery of home security is found in the details of the configuration. A window sensor is a sentinel, but it is only as intelligent as the parameters we define for it. By respecting the physics of magnetism and radio frequency, and by maintaining a disciplined governance model, a property owner can transform a collection of plastic nodes into an ironclad perimeter. The goal of security is the elimination of uncertainty. When we address the common window sensor configuration mistakes, we are not just fixing an alarm; we are establishing a state of domestic sovereignty.
